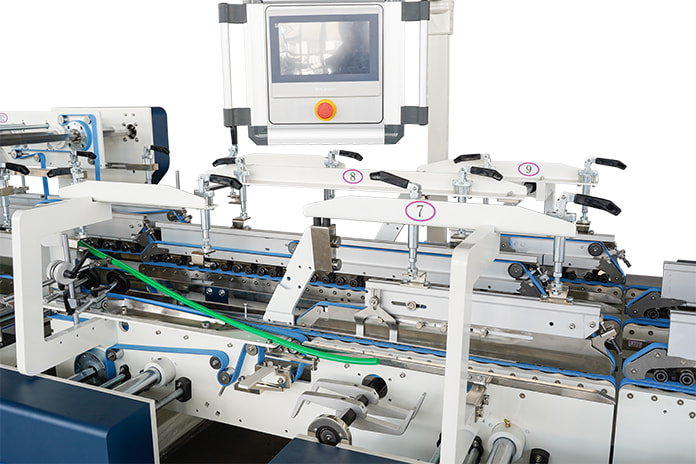

Multifunctional Heavy-duty Two-fold Folder Gluer

The Multifunctional Heavy-duty Two-fold Folder Gluer is a precision-engineered machine specifically designed for the forming and adhesive processing of die-cut paperboard. It delivers consistent and reliable performance, ensuring high-quality output for a wide range of applications. With its advanced control system, the machine offers exceptional controllability and ease of operation, making it suitable for both experienced operators and those new to box production.

This versatile machine is capable of efficiently folding and gluing various types of straight-line boxes, catering to diverse industry needs. It is particularly well-suited for the production of packaging in sectors such as food, pharmaceuticals, cosmetics, and stationery.

The Multifunctional Heavy-duty Two-fold Folder Gluer is designed to handle a variety of paperboard materials, providing flexibility for different production requirements. Its adaptability makes it an essential tool for manufacturers looking to streamline their box production processes while maintaining high standards of quality and efficiency.

PREV：Full Automatic Four-fold Folder Gluer MachineNEXT：High-speed Four-fold Lock Bottom Folder Gluer
  • Multifunctional Heavy-duty Two-fold Folder Gluer
Features Inquiry
Model CW-G-650-AC CW-G-800-AC CW-G-1100-AC
Paper material Cardboard 200-800 Cardboard 200-800 Cardboard 200-800
Max. line speed without load 280m/s 280m/s 280m/s
Power of the whole machine 13.5KW 13.5KW 13.5KW
Weight of the whole machine 4600Kg 4900Kg 5100Kg
Dimensions ( L×W×H ) 11*1.5*1.65 m 11*1.7*1.65 m 11*2.0*1.65 m
Air pressure 6bar 6bar 6bar
Air consumption 10m³/h 10m³/h 10m³/h

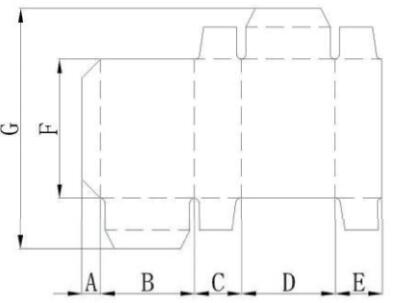

Straight Line Box

Model 650 800 1100
A+B+C+D+E 130-650  140-800 140-1100
E 20-300 20-300 20-300
F 70-800 70-800 70-800
G 75-800 75-800 75-800
D+E 68-320 68-320 68-320
A(MIN) 10 10 10

FAQ

  1. Q: Are you a trading company or a manufacturer?

We are a manufacturer with our own factory and workers.

  1. Q: What types of machines do you produce?

We offer various types of Folder Gluer Machines, including models customized for different box types such as cardboard and corrugated boxes.

  1. Q: Where is your factory located? How can I visit?

Our factory is located in Wenzhou City, Zhejiang Province, China. The nearest airport is Wenzhou Longwan International Airport, about a 40-minute drive from our factory.

  1. Q: What’s the price?

It depends on the specific model and configuration. Please provide the box type and size specifications so we can offer an accurate quote or suggestion.

  1. Q: How do I pay for my order?

Normally, we accept T/T (30% deposit before production and the balance before shipment). But we can also accept other payment methods like L/C, credit card as per you request.

  1. Q: What is your minimum order quantity?

1 set.

  1. Q: What is the delivery time?

It will take about 30 days to finish an order. But the exact time is according to actual situation.

  1. Q: How do you ensure quality and provide after-sales support?

Quality is our top priority. All machines are strictly tested before delivery. We offer a one-year warranty and provide comprehensive after-sales service and technical support. If any issues arise, please contact us immediately and we’ll help resolve them.

  1. Q: Do you provide installation and staff training services?

Certainly. Our after-sales service includes professional on-site installation and comprehensive staff training conducted by our experienced engineers. To ensure a smooth process, we kindly request that the buyer covers the costs associated with the engineer's travel, including round-trip airfare, local accommodation, daily salary.

To ensure you receive continuous support, our sales team is readily available to schedule instructional video conferences with our engineers throughout the lifespan of your CENWAN equipment. This comprehensive technical support includes live broadcasts from our facility and access to detailed video recordings.
