Cenwan's fully automatic dual-lane carton production line features an inline automatic die-cutter at the front end, eliminating intermediate transfers; A dual-lane process in the middle doubles gluing efficiency; A semi-automatic baler at the back end ensures efficient integration of the entire process, from cardboard to carton forming to packaging. This significantly reduces manual intervention, lowers costs, and improves efficiency.

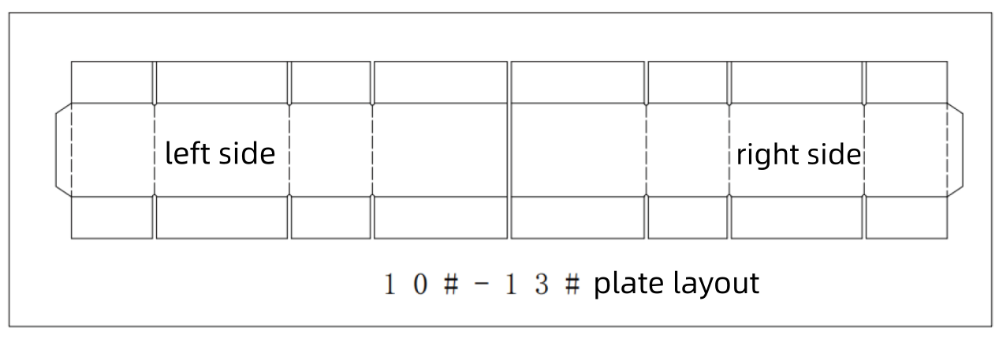

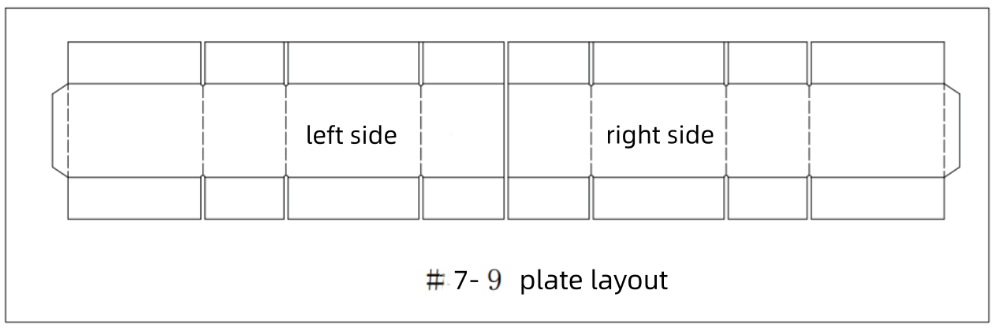

Box expansion diagram:

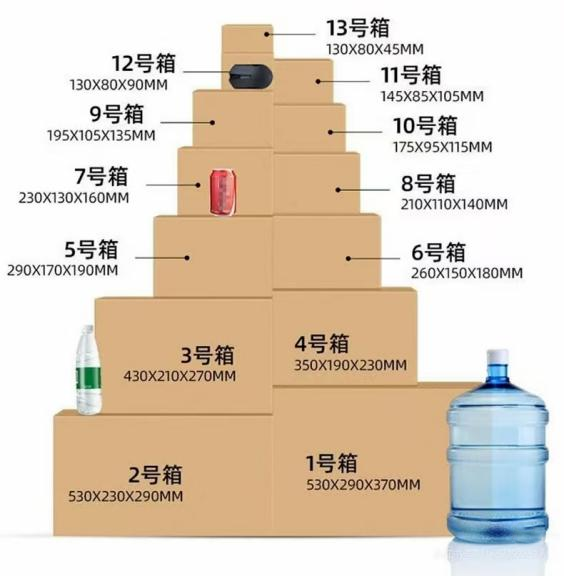

| （Refer to China Express Carton Standard Size Table as follow unit-cm:） | |
 |
|
 |
 |
|||
| 13# | 13×8×4.5 | 12# | 13×8×9 |
| 11# | 14.5x8.5x10.5 | 10# | 17.5×9.5×11.5 |
| 9# | 19.5x10.5x13.5 | 8# | 21×11×14 |
| 7# | 23×13×16 | 6# | 26×15×18 |
| 5# | 29×17×19 | 4# | 35×19×23 |
| 3# | 43×21×27 | 2# | 53×23×29 |
| 1# | 53×29×37 | ||
Machine Brief Introduction:
Cenwan's fully automatic dual-lane carton production line features an inline automatic die-cutter at the front end, eliminating intermediate transfers.
A dual-lane process in the middle doubles gluing efficiency.
A semi-automatic baler at the back end ensures efficient integration of the entire process, from cardboard to carton forming to packaging.
This significantly reduces manual intervention, lowers costs, and improves efficiency.
The equipment is precisely adapted to produce the full range of express carton sizes 7-13, ensuring a stable response to both the massive volume of carton orders during e-commerce promotions and regular express packaging needs.
Its core components are manufactured with high-precision craftsmanship and are equipped with internationally renowned electrical components and bearings.
This ensures exceptional stability and durability, even at high speeds, effectively reducing failure rates and maintenance costs.
Machine Features:
1. All transmission bearings in the entire machine are assembled using a temperature differential assembly process, resulting in more precise transmission and a longer service life.;
2. It is suitable for a variety of carton sizes from No.7 to No.13, which meets market common needs;
3. Machine utilizes servo motors to ensure high production efficiency and operational stability;
4. Universal tools are integrated, allowing the entire machine to be installed and debugged using a single tool, making machine adjustment and installation easier and more convenient.
5. Custom models are available, with optional features as one-click adjustment.
Technical Parameters:
| Dual-Channel Integrated Die-Cutting and Gluing Production Line | |||
| Model | Die Cutting Part | Model | Folder Gluer Part |
| Applicable Paper | E, N, F Corrugated Board | Applicable Paper | E, N, F Corrugated Board |
| Mechanical inner width | 2000mm | Max Cardboard Thickness | 800g |
| Controller Method | PLC human-machine interface control | Paper Feeding Method | Compatible with rotary slotter die cutting machine with waste removal |
| Max Cutting Speed | 180pcs/min | Max.Box Gluing Speed | 240m/min |
| Max Feeding Width | 1700mm×1200mm | Box Making Width | 450-750mm |
| Power Required | 20KW | Machine Dimensions | 17.5×4×1.8(L×W×H/M) for whole line |
| Main Functions | Paper feeding, die cutting, stacking, and conveying | Glue type | Solute-Type (White latex) |
| Paper Feeding Method | High-pressure centrifugal fan suction assists paper feeding | Total Weight(Approx.) | 16T for whole line |
| Power Required | 20KW | ||
| Air Pressure | 6Bar | ||
Machine details:
 |

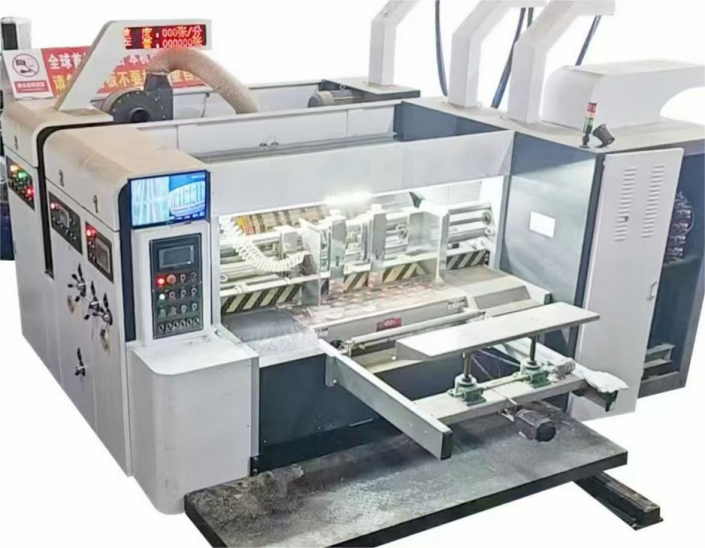

Feeding Section 1) The electrically controlled unit separation is equipped with an alarm that sounds during operation, ensuring worker safety. 2) A pneumatic interlocking device is used between each unit, ensuring secure, convenient, and accurate locking. 3) A master locking mechanism is installed to ensure smooth and accurate speed regulation. 4) A high-pressure centrifugal fan provides suction-assisted paper feeding, adjusting the air volume according to the degree of cardboard curvature to ensure smooth paper feeding. 5) A planned production quantity can be set. When the planned production quantity is reached, the system automatically stops paper feeding and issues an alarm signal. |
|
|

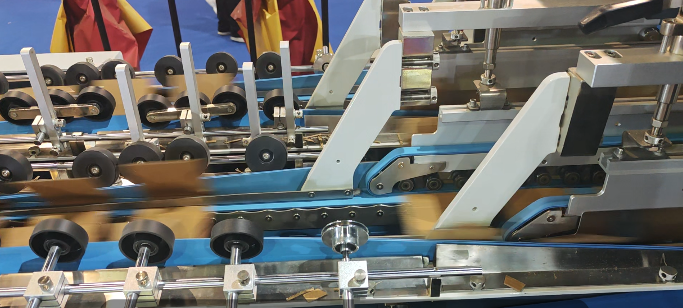

Folding Gluing Section 2. Both left and right channels simultaneously gluing and fold die-cut cardboard, doubling efficiency and stability. 3. The left and right servo belts can be adjusted to different speeds to make the folding box forming more precise. 4. The machine is equipped with an active upper belt to make the carton run more smoothly. |
 |

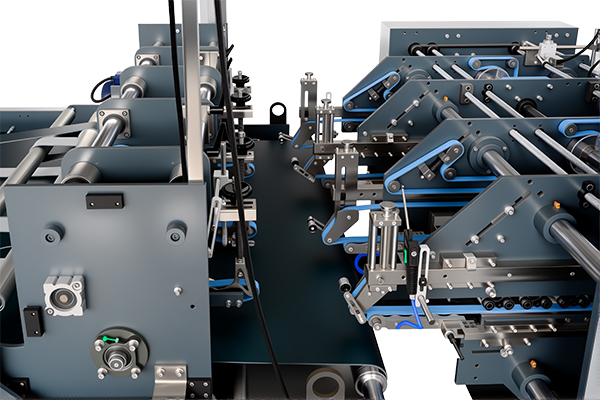

Conveying&Pressing Section 2. Each channel has an independent counting spray function for accurate counting. 3. The paper stack head can be transverse movement. When changing orders for flat-top boxes, simply adjusting the paper stack head allows for paper connection |
|
|

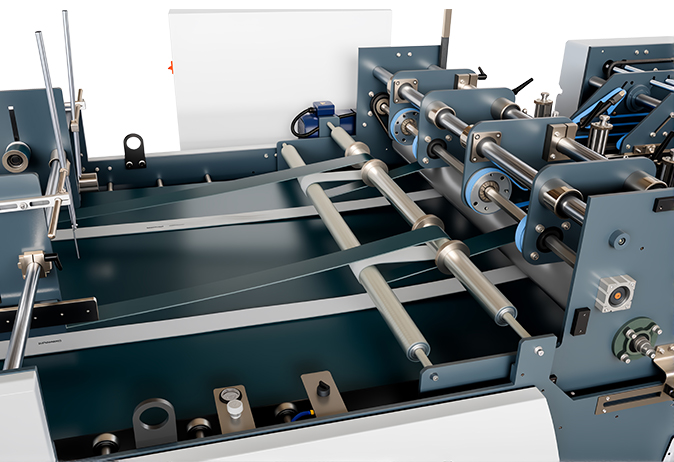

Fish-scale Type Paper Receiving Section 2. The narrow upper pressing belt design allows for direct visual observation of the paper receiving section's status, facilitating easier handling of exceptions； 3. Independent retraction and downward pressing of the upper belt, adjustable according to different carton sizes, enable the stacking boards to arrange the paper piles more neatly； 4. The baffles on both sides of the stacking board ensure more stable stacking of small cartons. |
 |

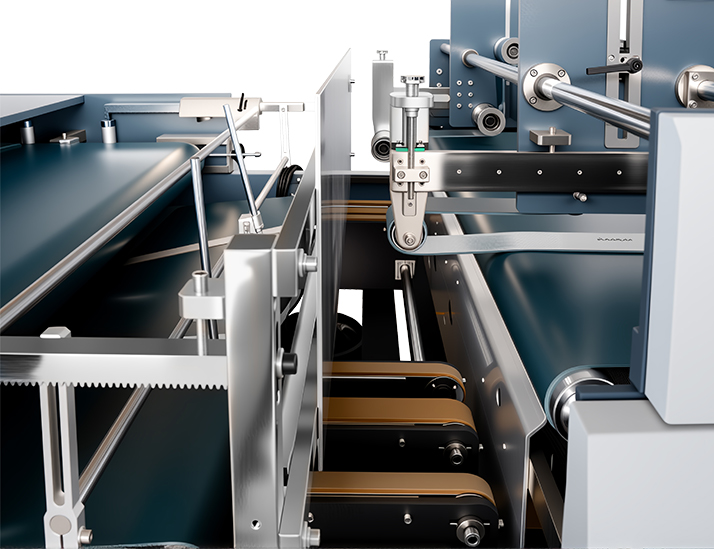

Aligning Plate 1. The exclusive dual-channel converging relay transfer patent, specifically designed for dual-channel stacking plate transfer, ensures the stacking height in each channel. 2. Independent servo control of the stacking plate transfer prevents clogging incidents caused by inconsistencies between the two channels. 3. An integrated stacking plate adapted for flat-top boxes offers user-friendly operation. |
|
|
Conveyor Platform 1. Utilizes an independent, soft sponge belt that prevents damage to finished products, ensuring smooth conveying and excellent quality. 2. The entire conveyor unit can be moved forward and backward. 3. The conveyor speed is automatically adjusted based on the main machine's rotational speed and the photoelectric controller. 4. Manual operation and speed are also available. |
Optional devices:
  |
One-touch Machine Adjustment One-touch machine adjustment combined with a QR code scanning function makes The QR code scanning function scans the order QR code to directly access the preset parameters for the corresponding box type, eliminating manual selection steps. |
Warranty & After-Sale Service:
1. Warranty period: The seller provides a 12-month free warranty period (the starting date is subject to the delivery date), and the warranty items including the electrical appliances in the electric control box and import brand belts can be guaranteed for one year. Parts identified as quality problems during the warranty period can be replaced free of charge, but the freight needs to be borne by the buyer . Normal wear and tear and vulnerable parts are not covered by the warranty.
2. Out of warranty period: The seller promises lifetime maintenance, lifetime supply of spare parts and lifetime technical support. The spare parts and freight are charged according to the market price as appropriate.
3. Remark:If the buyer privately modifies the structure, configuration and function of the machine without the written consent of the seller, the quality problems and consequences caused by the buyer shall be fully responsible, and the warranty service will be automatically terminated.
4. About installation and training: The seller can provide engineer to buyer's factory for installation and training work,the location is at buyer's workshop.The buyer needs to be responsible for the visa fee of the seller's engineer, round-trip air tickets and other transportation costs, the engineer's board and lodging expenses, and the engineer's salary of 150 US dollars/day.The supporting materials (such as power supply, air source, materials,wires,air pipes and etc. ) required for installation and training must be prepared by the buyer.
FAQ
Q: Are you a trading company or a manufacturer?
We are an ISO9001:2015 and CE-certified manufacturer with our own factory and staff.
Q: What types of machines do you produce?
We offer various types of Folder Gluer Machines, including models customized for different box types such as cardboard and corrugated boxes.
Q: Where is your factory located? How can I visit?
Our factory is located in Wenzhou City, Zhejiang Province, China. The nearest airport is Wenzhou Longwan International Airport, about a 40-minute drive from our factory.
Q: What’s the price?
It depends on the specific model and configuration. Please provide the box type and size specifications so we can offer an accurate quote or suggestion.
Q: How do I pay for my order?
Normally, we accept T/T (30% deposit before production and the balance before shipment). But we can also accept other payment methods like L/C, credit card as per you request.
Q: What is your minimum order quantity?
1 set.
Q: What is the delivery time?
It will take about 30 days to finish an order. But the exact time is according to actual situation.
Q: How do you ensure quality and provide after-sales support?
Quality is our top priority. All machines are strictly tested before delivery. We offer a one-year warranty and provide comprehensive after-sales service and technical support. If any issues arise, please contact us immediately and we’ll help resolve them.
Q: Do you provide installation and staff training services?
Certainly. Our after-sales service includes professional on-site installation and comprehensive staff training conducted by our experienced engineers. To ensure a smooth process, we kindly request that the buyer covers the costs associated with the engineer's travel, including round-trip airfare, local accommodation, daily salary.
To ensure you receive continuous support, our sales team is readily available to schedule instructional video conferences with our engineers throughout the lifespan of your CENWAN equipment. This comprehensive technical support includes live broadcasts from our facility and access to detailed video recordings.
