High-speed Four-fold Lock Bottom Folder Gluer

The High-speed Four-fold Lock Bottom Folder Gluer is a versatile and efficient machine designed for the production of various box types, including Straight Line Boxes, Bottom-lock Boxes, and 4 & 6 Corner Boxes. With seven functional combinations, this machine ensures precision, stability, and flexibility throughout the folding and gluing process.

PREV：Multifunctional Heavy-duty Two-fold Folder GluerNEXT：No next product
  • High-speed Four-fold Lock Bottom Folder Gluer
Features Inquiry

1. Autofeed Section:
      Equipped with an independent servo drive for precise control.
      Features a linear guide-adjusted feeder knife with BOSTER tungsten steel for durability.
      Utilizes high-quality paper feeder belts from BOST (Switzerland/Habasi) for reliable performance.
      Includes a pneumatic vibrator to ensure smooth and stable paper feeding.

2. Automatic Calibration:
      Adjustable side gauges and lower trays ensure parallel alignment of the paper during conveyance, maintaining consistent accuracy.

3. Pre-folded Portion:
      Provides 180° pre-folding for the upper left flap and 160° pre-folding for the third crease line.
      Includes a pre-folding opening device for the first and third crease lines.
      Features an abduction belt system for easy disassembly and flexibility in shaping boxes.

4. Bottom Hook:
      A complete front flap bottom locking device ensures smooth and accurate bottom locking.
      The abduction belt system enhances flexibility and ease of use for shaped boxes.

5. Prefix for Notebook Computers:
      Accurately completes the second and fourth folding lines at 180°.
      Features an adjustable inflection belt with independent speed control for precise operation.

6. Pressurization Section:
      Upper and lower brackets are individually driven, allowing for independent length adjustments.
      Includes an automatic belt tension adjustment system for consistent performance.
      Ensures smooth and rhythmic box accumulation for seamless conveyance.

7. Transportation Section:
      Conveying pressure speed can be automatically or manually adjusted to match the main machine's speed.
      It features a pneumatic pressure adjustment system for the upper conveying section that is adaptable to varying box lengths.

Chengwang High Speed Folder Gluer is engineered to deliver high-speed, reliable, and precise folding and gluing operations, making it an ideal solution for modern packaging production needs.

Model CW-G-650 CW-G-800 CW-G-1100
Paper material Cardboard 200-800 Cardboard 200-800 Cardboard 200-800
Max. line speed without load 400m/s 400m/s 400m/s
Power of the whole machine 21.5KW 25.5KW 25.5KW
Weight of the whole machine 6400Kg 7400Kg 7800Kg
Dimensions ( L×W×H ) 14.4x1.5x1.65m 16.4x1.7x1.65m 16.4x2.0x1.65m
Air pressure 6bar 6bar 6bar
Air consumption 10m³/h 10m³/h 10m³/h

Straight Line Box

Model 650 800 1100
A+B+C+D+E 130-650  140-800 140-1100
E 20-300 20-300 20-300
F 70-800 70-800 70-800
G 75-800 75-800 75-800
D+E 68-320 68-320 68-320
A(MIN) 10 10 10

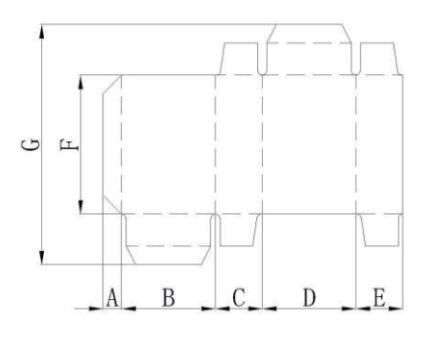

Bottom-lock Box
Model 650 800 1100
A+B+C+D+E 130-650  140-800 140-1100
E 20-300 20-300 20-300
F 70-800 70-800 70-800
G(Max) 75-800 75-800 75-800
H(Min) 25 25 25
D+E 68-320 68-380 68-380
L 30-100

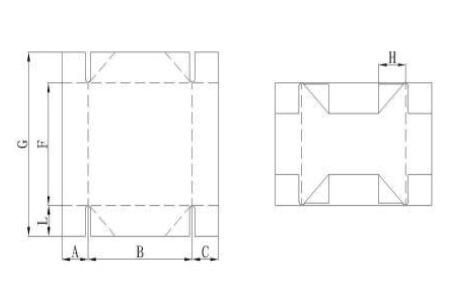

4 Corner Box
Model 650 800 1100
A+B+C NA  160-800 160-1100
B NA 90-600 90-850
G NA 160-850 160-850
H(MIN) NA 25 25
L NA 25-120 25-150

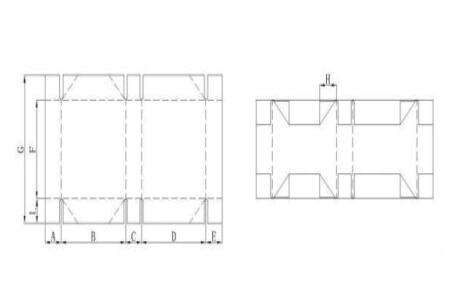

6 Corner Box
Model 650 800 1100
A+B+C+D+E NA  270-800 370-1100
B NA 90-300 180-500
G NA 160-450 160-450
H(MIN) NA 25 25
L NA 25-120 25-150

FAQ

  1. Q: Are you a trading company or a manufacturer?

We are a manufacturer with our own factory and workers.

  1. Q: What types of machines do you produce?

We offer various types of Folder Gluer Machines, including models customized for different box types such as cardboard and corrugated boxes.

  1. Q: Where is your factory located? How can I visit?

Our factory is located in Wenzhou City, Zhejiang Province, China. The nearest airport is Wenzhou Longwan International Airport, about a 40-minute drive from our factory.

  1. Q: What’s the price?

It depends on the specific model and configuration. Please provide the box type and size specifications so we can offer an accurate quote or suggestion.

  1. Q: How do I pay for my order?

Normally, we accept T/T (30% deposit before production and the balance before shipment). But we can also accept other payment methods like L/C, credit card as per you request.

  1. Q: What is your minimum order quantity?

1 set.

  1. Q: What is the delivery time?

It will take about 30 days to finish an order. But the exact time is according to actual situation.

  1. Q: How do you ensure quality and provide after-sales support?

Quality is our top priority. All machines are strictly tested before delivery. We offer a one-year warranty and provide comprehensive after-sales service and technical support. If any issues arise, please contact us immediately and we’ll help resolve them.

  1. Q: Do you provide installation and staff training services?

Certainly. Our after-sales service includes professional on-site installation and comprehensive staff training conducted by our experienced engineers. To ensure a smooth process, we kindly request that the buyer covers the costs associated with the engineer's travel, including round-trip airfare, local accommodation, daily salary.

To ensure you receive continuous support, our sales team is readily available to schedule instructional video conferences with our engineers throughout the lifespan of your CENWAN equipment. This comprehensive technical support includes live broadcasts from our facility and access to detailed video recordings.
