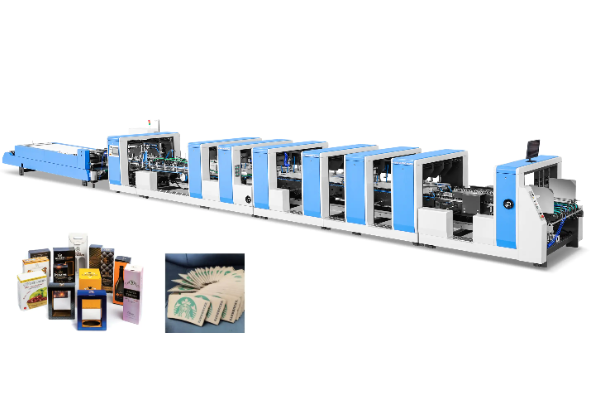

How Does a High Speed Folder Gluer Handle Folding and Gluing in One Pass

Changing Role of Folding and Gluing in Packaging Workflows

In many packaging lines, folding and gluing used to happen as two separate steps. A sheet would be folded first, then moved somewhere else for glue and bonding. That kind of process works, but it also means more handling and more time spent moving materials around.

Over time, production needs started to lean toward a smoother flow. Instead of stopping between steps, folding and gluing began to be connected in a single movement. The material just keeps going forward.

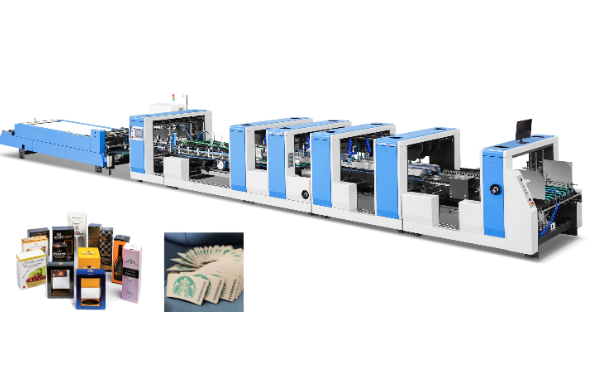

A High Speed Folder Gluer is built around that idea. Folding and bonding are placed in one continuous path so the sheet does not need to be transferred between different stations. A Folder Gluer Machine follows the same logic, keeping each step close to the next one.

The change is not only about output pace. It is also about keeping the material stable, since repeated handling often brings small alignment differences.

Basic Working Structure of a High Speed Folder Gluer

Inside a High Speed Folder Gluer, the layout is arranged in a straight line of movement. Each section has its own role, but all parts work as one connected flow.

A typical path looks like this:

• sheet feeding area
• guiding and alignment section
• folding section
• glue application section
• pressing and shaping area

The sheet enters flat and moves forward without stopping. Each stage changes the shape a little more until a finished folded and bonded structure appears.

What keeps everything steady is the controlled movement between sections. If alignment is slightly off at the start, it can carry through the rest of the process. That is why guiding parts are placed early in the system.

How Folding Starts Inside a High Speed Folder Gluer

Folding begins as soon as the sheet enters the machine. At this point, the material is still flat and needs to be positioned correctly before shaping starts.

Guiding parts help bring the sheet into line so it enters the folding area in a stable position. Once it is aligned, folding sections start shaping it step by step instead of all at once.

Different materials behave in different ways:

• lighter sheets move through folds with less resistance
• thicker sheets need more controlled shaping
• coated surfaces can slightly change bending response

Folding is not a single action. It is a sequence of small movements that gradually define the structure.

Transition From Folding to Gluing in One Flow

After folding begins, the material keeps moving forward without pause. It goes directly into the gluing area. This transition depends a lot on timing and alignment.

The folded shape needs to stay stable while moving. If it shifts even a little during transfer, glue may land in the wrong position.

A Folder Gluer Machine keeps folding and gluing sections working in sync. The movement between them is carefully matched so the material does not stop between stages.

In this transition, three things matter most:

• keeping the folded shape steady during movement
• placing glue at the correct fold position
• avoiding sudden changes in speed or direction

When these stay balanced, folding and gluing can happen in one continuous pass.

Glue Application in Folder Gluer Machine

Once the folded sheet reaches the glue section, adhesive is applied only to specific areas. It is not spread everywhere, but placed where bonding is needed.

The glue system follows the movement of the sheet and works together with timing control. If timing is off, glue placement may shift slightly.

Key points in this stage include:

• how much glue is used
• where glue is placed on the folded structure
• how glue reacts with paper surface
• how fast the material moves through the section

Glue behavior also changes depending on material surface, which makes this step closely linked with earlier folding results.

Synchronization Between Folding and Gluing

Folding and gluing do not work separately in a High Speed Folder Gluer. They are connected parts of one movement line.

The folding section prepares the shape, and the gluing section follows right after. Both depend on steady timing so the material does not lose position in between.

A simple way to look at the flow:

Each step depends on the one before it. If one part becomes unstable, the rest of the flow can be affected.

Material Behavior During One Pass Processing

Not all materials behave the same way inside a Folder Gluer Machine. Even small differences in thickness or surface feel can change how folding and gluing work.

Some sheets bend easily and keep shape well. Others resist folding slightly and need more controlled movement. Surface coating can also influence how glue spreads and holds.

During one-pass processing, material behavior affects:

• sharpness of folds
• glue absorption level
• stability after pressing
• alignment during movement

The machine needs to handle these differences while keeping the flow continuous.

Internal Control Systems Supporting Movement

Inside a High Speed Folder Gluer, control systems help keep everything aligned during continuous operation.

Sensors and guiding parts track sheet position as it moves. If something shifts slightly, small adjustments help bring it back into line.

These systems support:

• feeding alignment
• timing between sections
• pressure control during folding
• glue placement accuracy

The adjustments are small but important for keeping the whole process stable during continuous flow.

What Can Go Wrong During Continuous Running

Even when everything is set properly, a High Speed Folder Gluer can still show small changes during long operation. The process is continuous, so every section depends on the one before it staying steady.

One common situation is slight shifting during feeding. If a sheet enters just a bit off line, that small difference can travel through folding and later reach the gluing area.

Material differences also play a role. One batch may fold smoothly, another may feel slightly stiffer. A Folder Gluer Machine reacts to these changes, but the operator still notices small variations in shape or glue placement.

Things that may appear during running:

• light movement change at feeding stage
• folding line not feeling fully even
• glue landing slightly off position
• shape differences between early and later output

These are usually small, but they become noticeable in long continuous work.

Operator Attention in Daily Use

Even though the machine handles most of the work, someone still stays close to observe the flow. The operator does not constantly adjust everything, but watches how the process behaves.

Most attention goes to simple signs:

• how smoothly sheets enter the machine
• whether folding stays consistent over time
• if glue placement looks stable
• whether finished boxes keep the same shape

Sometimes small adjustments are made during operation, especially when switching from one carton style to another. These changes are usually minor and based on feel rather than complex steps.

Maintenance and Its Quiet Influence

A High Speed Folder Gluer depends heavily on small mechanical parts working smoothly together. When dust or glue builds up, movement can slowly lose smoothness.

Rollers, guides, and glue paths need regular cleaning. If not kept in order, folding may lose sharpness or sheets may start to shift slightly during movement.

Typical maintenance focus includes:

• keeping feeding area clean and smooth
• checking roller pressure and movement
• clearing glue buildup in application zones
• watching for wear in folding sections

A Folder Gluer Machine that is looked after regularly tends to behave more steadily during long use periods.

Continuous Flow Compared With Step By Step Work

When folding and gluing happen in one pass, the process feels more connected. The sheet does not stop between stages, so movement becomes a single flow from start to finish.

Compared with step-by-step handling, the difference is easy to notice:

The one-pass style depends more on timing inside the machine rather than external handling.

Adjusting for Different Carton Jobs

A Folder Gluer Machine is rarely used for only one type of box. Different jobs require different folding paths and glue positions.

Changing from one design to another usually means small adjustments. Nothing too complicated, but each change affects how the next batch runs.

Common adjustment areas:

• folding guide position changes
• glue timing shift
• feeding distance adjustment
• pressure balance during pressing

These settings help the machine adapt to different carton shapes without stopping the overall flow.

Material Behavior Over Longer Operation

As the machine runs for a longer period, materials can show slight differences in behavior. Some remain stable from start to end. Others may react a bit differently after continuous folding and pressing.

What often appears:

• folding lines becoming slightly softer over time
• glue absorption changing with surface condition
• small alignment drift in long runs
• output feel not exactly identical from start to finish

These changes are usually gradual and managed through monitoring rather than sudden correction.

How Speed and Stability Work Together

Speed in a High Speed Folder Gluer is not only about fast movement. It depends on how well each section keeps up with the next.

If speed increases but timing is not balanced, folding accuracy and glue placement may shift slightly. If movement is too slow, production flow loses rhythm.

So operation usually sits between:

• steady feeding
• controlled folding
• accurate glue timing
• consistent pressing

A Folder Gluer Machine works best when these parts move together in a stable rhythm.

Closing View on One Pass Operation

Folding and gluing in one pass is not just a combination of two actions. It is a connected flow where each stage supports the next one.

A High Speed Folder Gluer brings sheet feeding, folding, glue application, and pressing into one continuous movement. When alignment and timing stay steady, the process feels smooth from flat sheet to finished carton without visible interruption.
